Product Categories3D AOI
3D AOI

The perfect combination of 2D and 3D

3D digital grating projection technology and Moiré fringe phase difference software algorithm.
Truly reflect the defect status of components.

Machine to machine communication: IPC-SMEMA-9851 or IPC-HERMES-9852 or IPC-2591 CFX.

  • High precision, high reliability
    Using digital grating projection, no mechanical vibration, wear
  • Height test range: 20mm
    The high-frequency grating ensures the detection accuracy, while the low-frequency grating can cover a larger detection range to ensure accurate 3D detection
  • Precise phase shift control
    Accurate phase shift control to reduce measurement errors
  • Large-scale bending compensation
    It can realize a large range of plate bending compensation, and the effect of removing shadows is good
  • 8 projection
    Optional 8 projection system to solve the shadow problem to the greatest extent
  • Automatically adapt to light and dark parts
    Projection brightness can be adjusted in real time to meet the detection of parts with different reflectivity

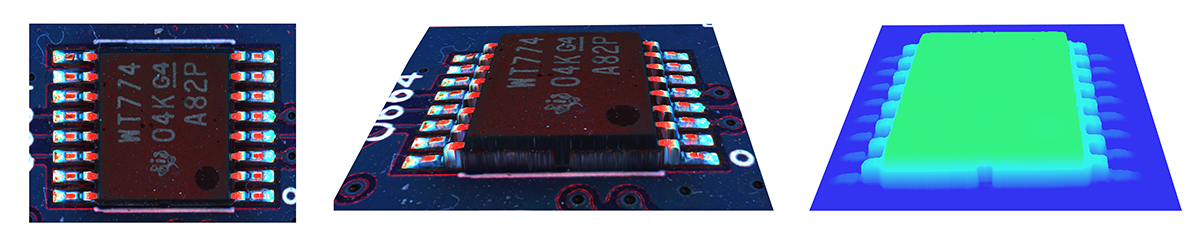

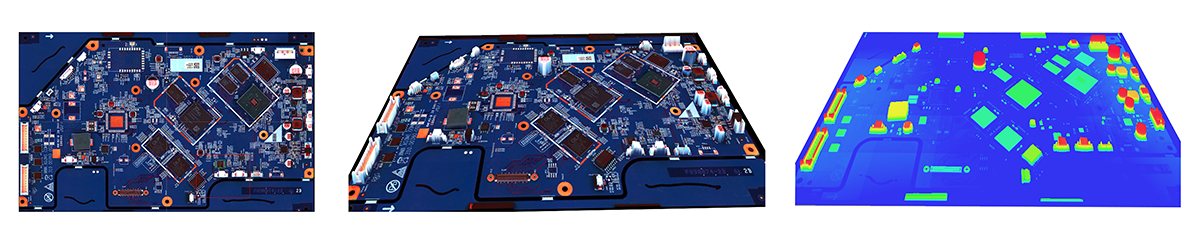

The height of the full-board components is quickly restored, which truly and directly reflects the defect status of the original.

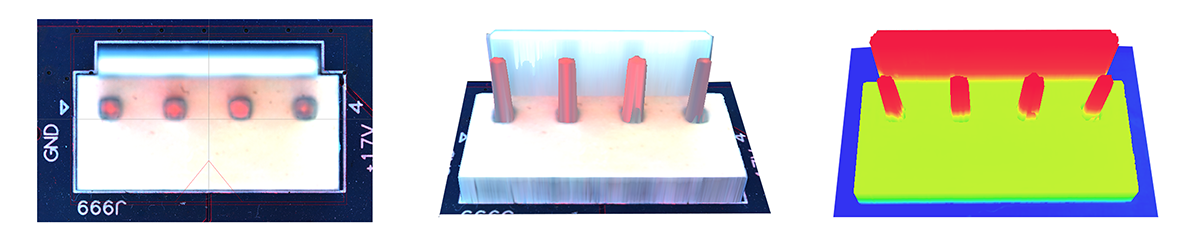

Eight projections (optional), multi-angle illumination system, eliminate the influence of the shadow of plateau parts on the three-dimensional image

Defects of BGA clamps can be accurately judged by Z deviation

product list

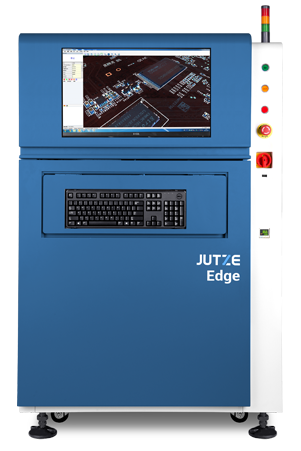

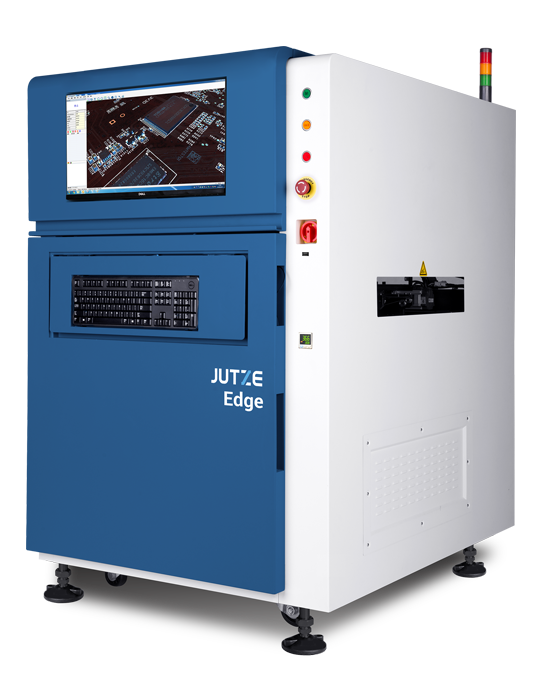

  • Edge
    Device type: online automatic 3D AOI
    Features: the perfect combination of 2D and 3D technology
    Applicable substrate: 50mm x 70mm - 510mm x 460mm
    Substrate thickness: 0.6mm - 6.0mm
    Resolution: 8μm, 10μm，15μm
    Dimensions: W1080 x D1300 x H1850(mm)
    Weight: 950KG
